| AIRCRAFT |
:
|
| Takeoff Weight |
249g
|
| Dimensions |
Folded (without propellers): 148×94×64 mm (L×W×H)
Unfolded (with propellers): 298×373×101 mm (L×W×H)
|
| Max Ascent Speed |
5 m/s (S Mode)
5 m/s (N Mode)
3 m/s (C Mode)
|
| Max Descent Speed |
5 m/s (S Mode)
5 m/s (N Mode)
3 m/s (C Mode)
|
| Max Horizontal Speed (at sea level, no wind) |
16 m/s (S Mode)
12 m/s (N Mode)
12 m/s (C Mode)
|
| Max Takeoff Altitude |
4000m
|
| Max Flight Time |
34 minutes (with Intelligent Flight Battery)
|
| Max Hovering Time |
30 minutes (with Intelligent Flight Battery)
|
| Max Flight Distance |
18 km (with Intelligent Flight Battery and measured while flying at 40.7 kph in a windless environment at 20 meters above sea level)
|
| Max Wind Speed Resistance |
10.7 m/s
|
| Max Tilt Angle |
35°
|
| Operating Temperature |
-10° to 40° C (14° to 104° F)
|
| Global Navigation Satellite System |
GPS + Galileo + BeiDou
|
| Hovering Accuracy Range |
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
|
| Internal Storage |
2 GB
|
| CAMERA |
:
|
| Image Sensor |
1/1.3-inch CMOS, Effective Pixels: 48 MP
|
| LensLens |
FOV: 82.1°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
|
| ISO Range |
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
12 MP: 100-6400
48 MP: 100-3200
|
| Shutter Speed |
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
|
| Max Image Size |
8064×6048
|
| Still Photography Modes |
Single Shot: 12 MP and 48 MP
Burst Shooting:
12 MP, 3/5/7 frames
48 MP, 3 frames
Automatic Exposure Bracketing (AEB):
12 MP, 3/5/7 frames at 0.7 EV step
48 MP, 3 frames at 0.7 EV step
Timed:
12 MP, 2/3/5/7/10/15/20/30/60 s
48 MP, 5/7/10/15/20/30/60 s
|
| Photo Format |
JPEG/DNG (RAW)
|
| Video Resolution |
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
|
| Video Format |
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
|
| Max Video Bitrate |
H.264/H.265: 150 Mbps
|
| Supported File System |
exFAT
|
| Color Mode |
Normal:
8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:0 (H.265)
|
| Digital Zoom |
12MP Photo: 1-2x
4K: 1-3x
FHD: 1-4x
|
| GIMBAL |
:
|
| Mechanical Range |
Tilt: -135° to 80°
Roll: -135° to 45°
Pan: -30° to 30°
|
| Controllable Range |
Tilt: -90° to 60°
Roll: -90° or 0°
|
| SENSING |
:
|
| Sensing Type |
Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft
|
| Forward |
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 12 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Backward |
Measurement Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 12 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Lateral |
Measurement Range: 0.5-12 m
Effective Sensing Speed: Flight Speed ≤ 12 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Upward |
Measurement Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 5 m/s
FOV: Front and Back 72°, Left and Right 90°
|
| Downward |
Measurement Range: 0.3-12 m
Effective Sensing Speed: Flight Speed ≤ 5 m/s
FOV: Front and Back 106°, Left and Right 90°
|
| VIDEO TRANSMISSION |
:
|
| Video Transmission System |
O4
|
| Live View Quality |

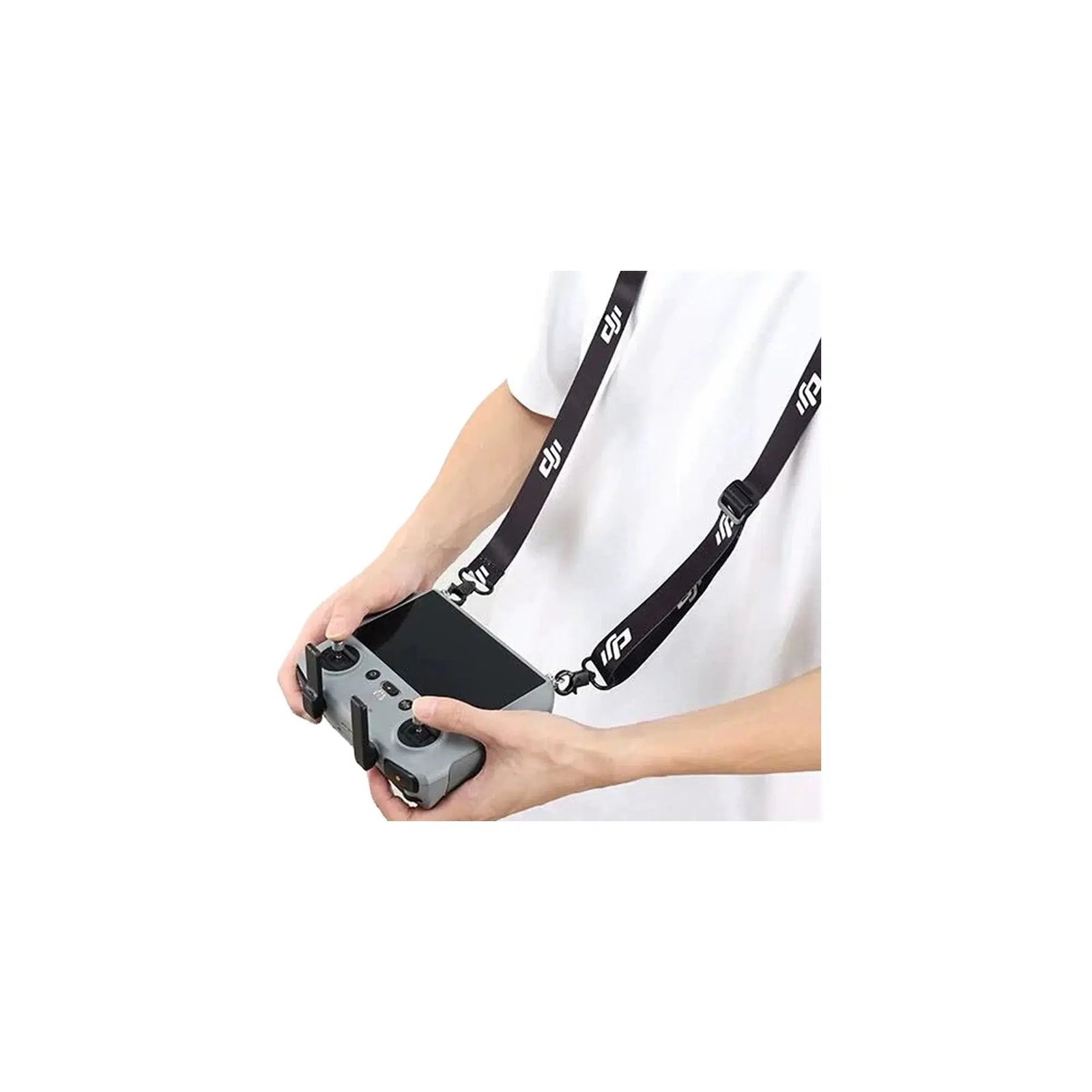

Remote Controller:
Up to 1080p/60fps (available when the aircraft is flying in Photo or Video mode)
Up to 1080p/30fps (available when the aircraft is flying in Video mode)
Up to 1080p/24fps (available when the aircraft is in standby mode on the ground)
|
| Operating Frequency |
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
|
| Transmitter Power (EIRP) |
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
|
| Max Transmission Distance (free of interference) |
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km
|
| Max Transmission Distance (with interference) |
Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km
Low Interference: suburb/seaside, approx. 10-20 km
|
| Max Download Speed |
O4:
10 MB/s (with DJI RC-N2)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s
|
| Lowest Latency |
Aircraft + Remote Controller: approx. 120 ms
|
| Antenna |
4 antennas, 2T4R
|
| BATTERY |
:
|
| Capacity |
Intelligent Flight Battery: 2590 mAh
|
| Weight |
Intelligent Flight Battery: approx. 77.9 g
|
| Nominal Voltage |
Intelligent Flight Battery: 7.32 V
|
| Max Charging Voltage |
Intelligent Flight Battery: 8.6 V
|
| Type |
Li-ion
|
| Energy |
Intelligent Flight Battery: 18.96 Wh
|
| Charging Temperature |
5° to 40° C (41° to 104° F)
|
| Charging Time |
Intelligent Flight Battery:
70 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
58 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)
|
