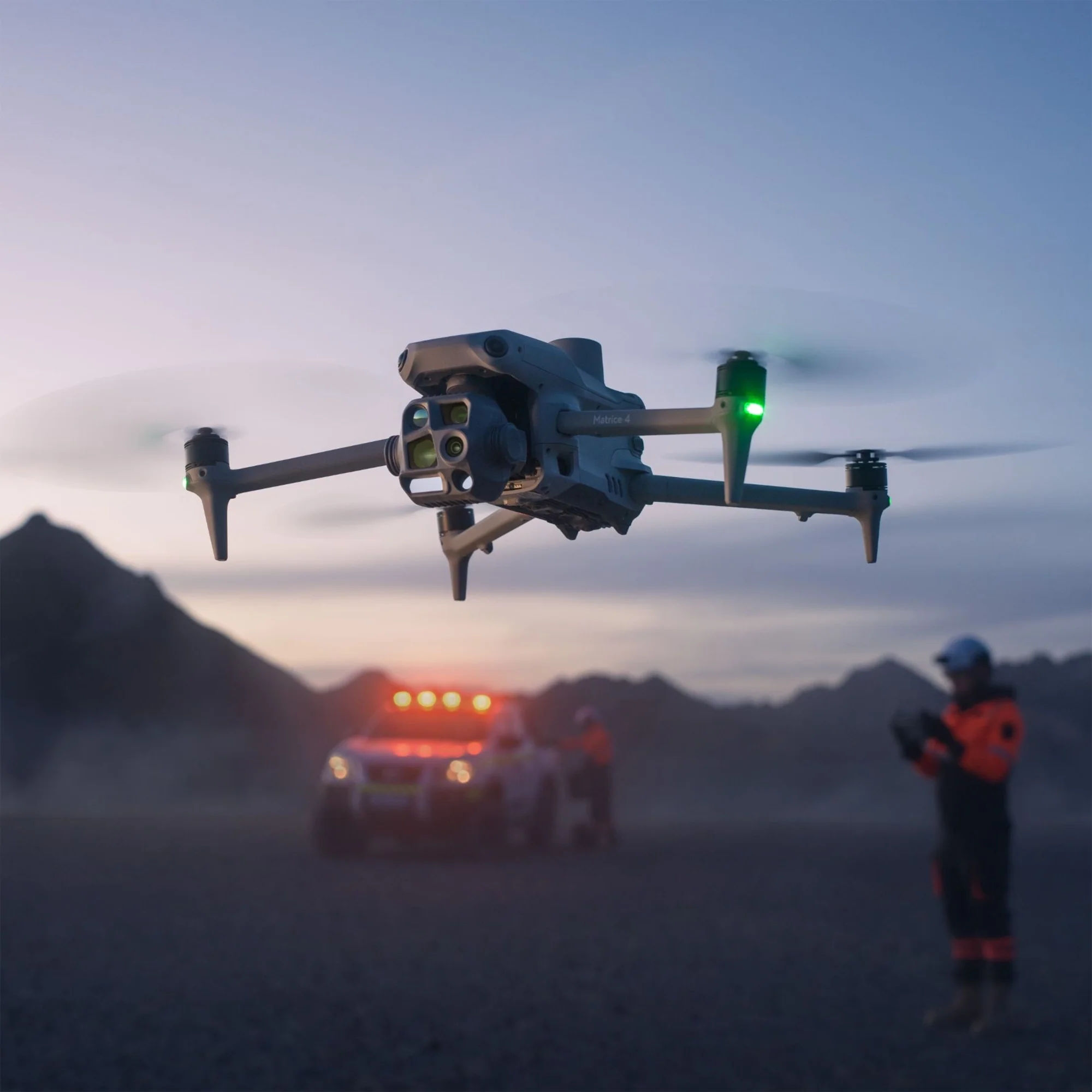

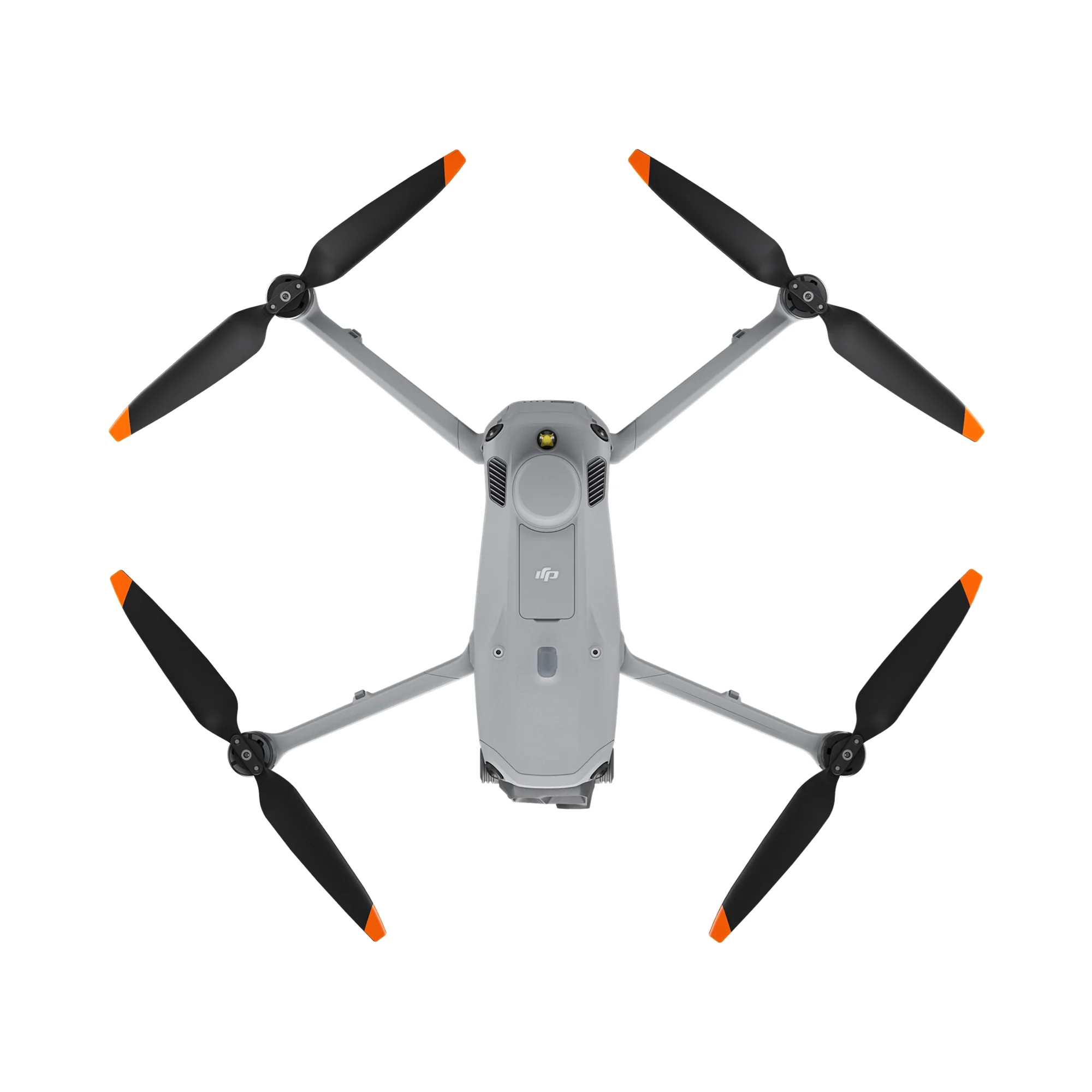

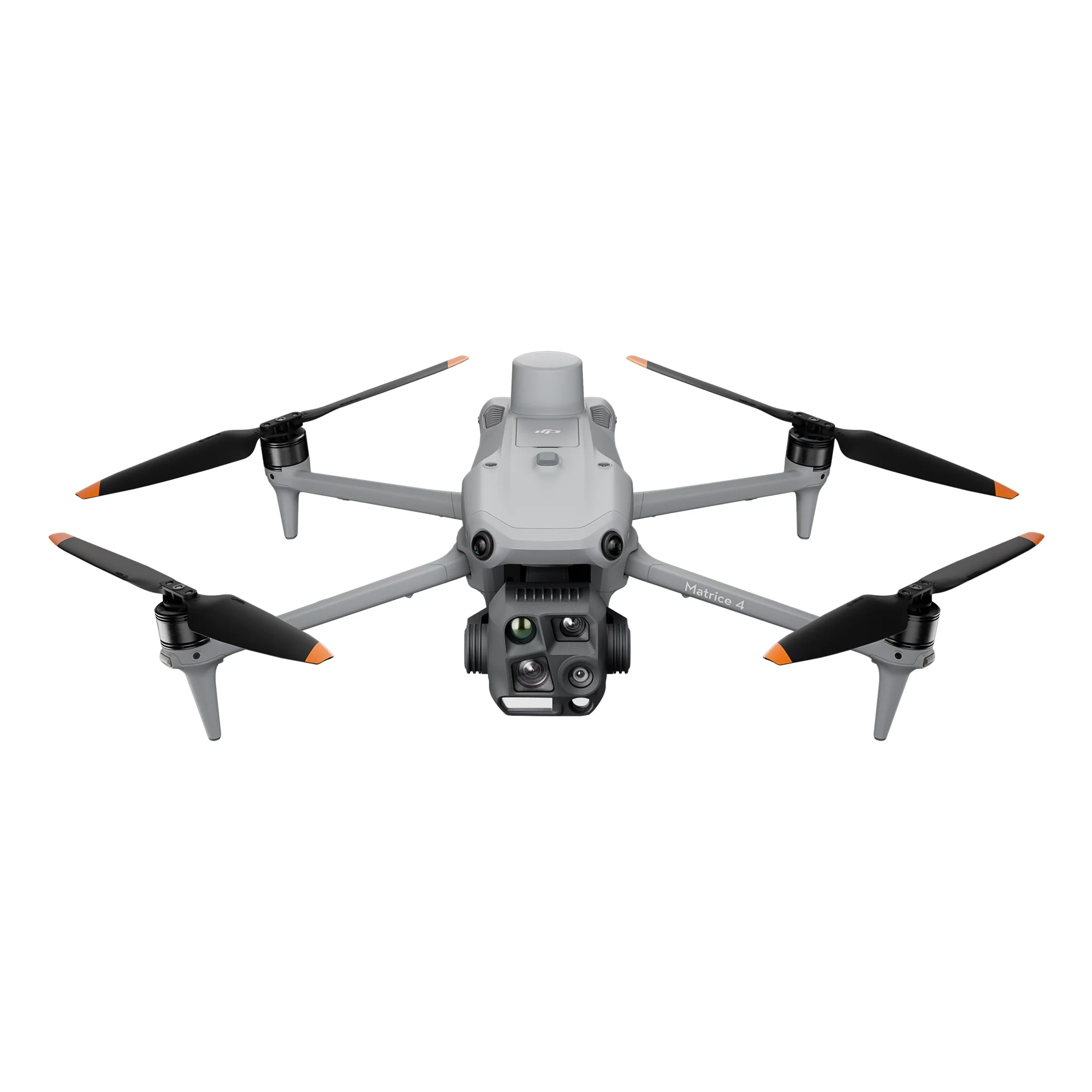

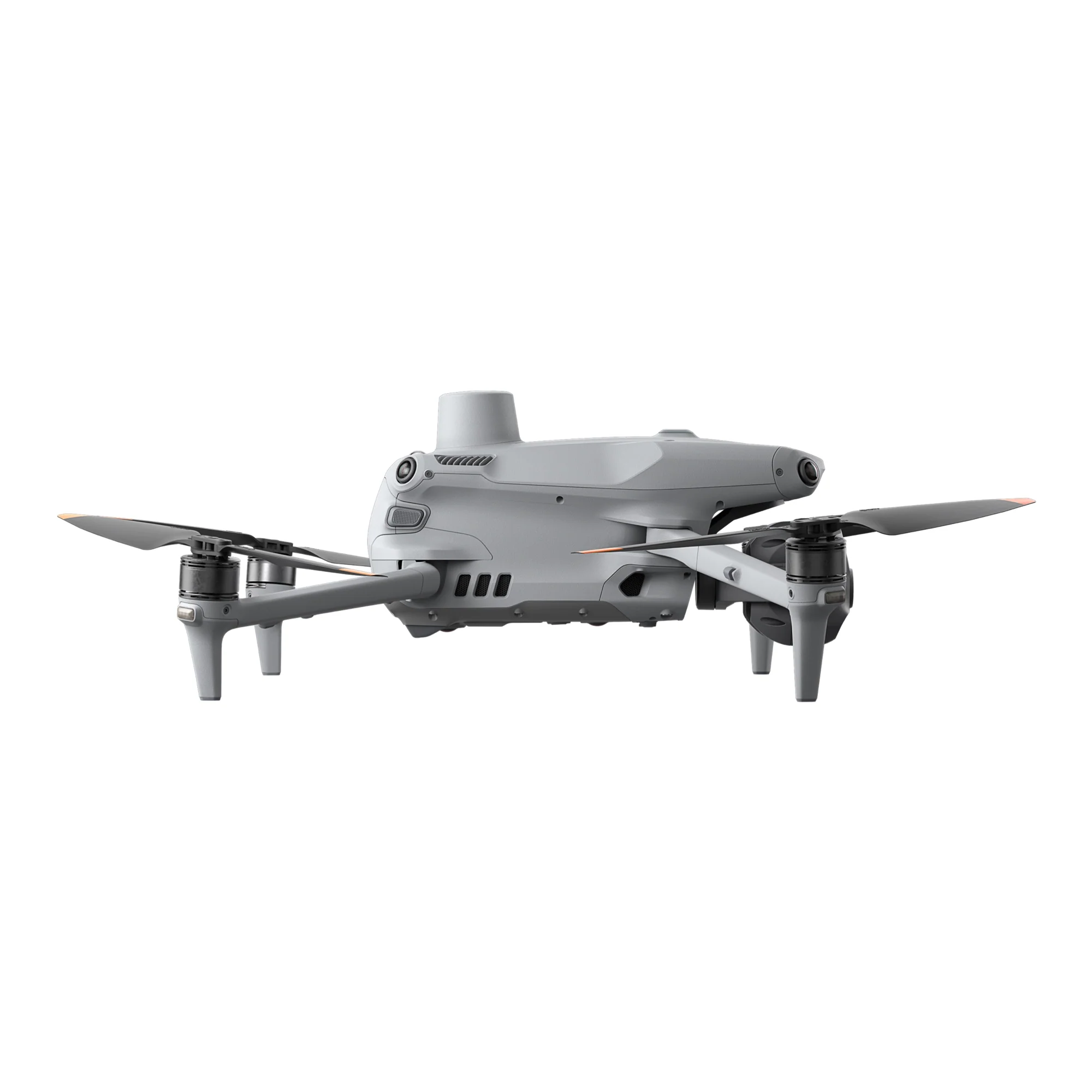

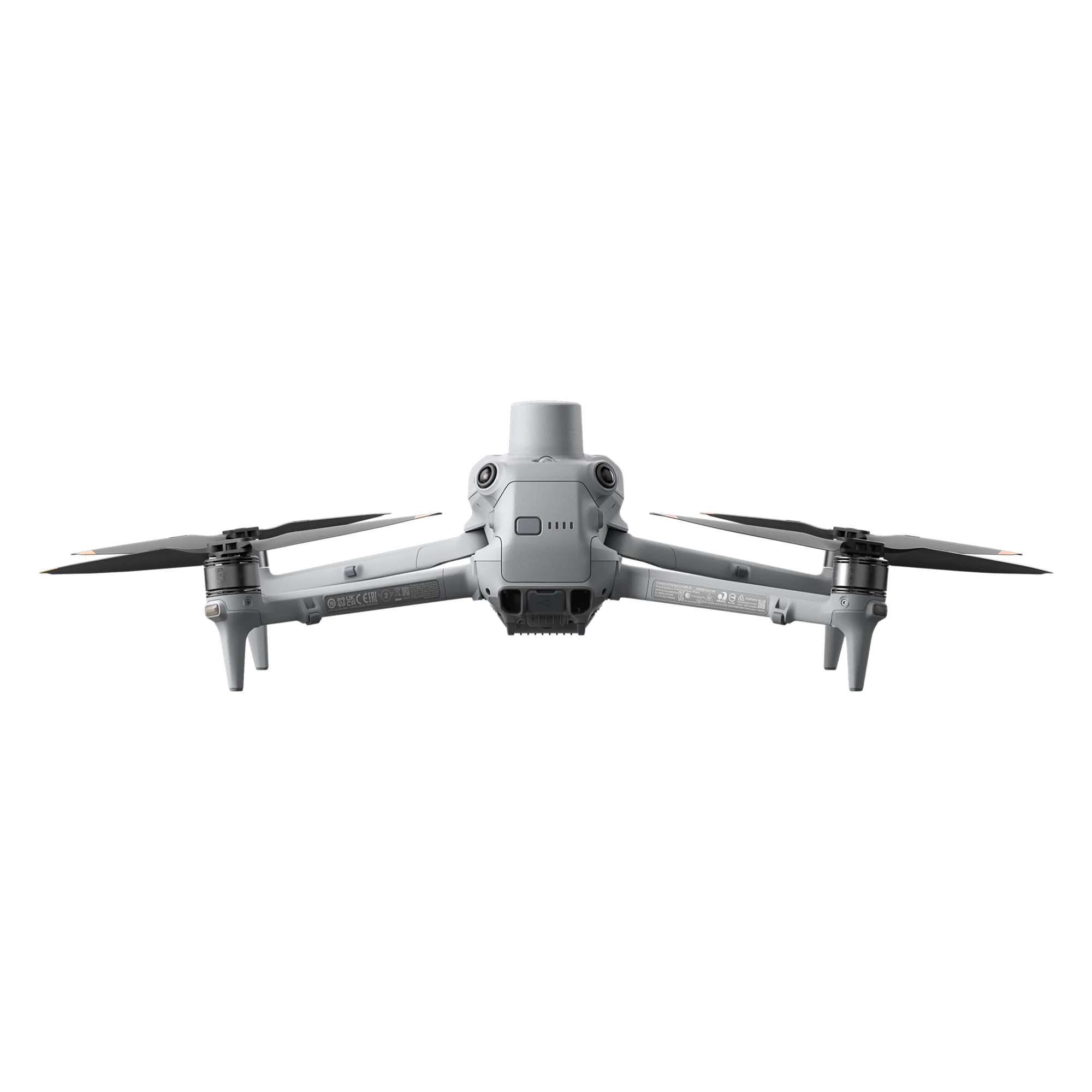

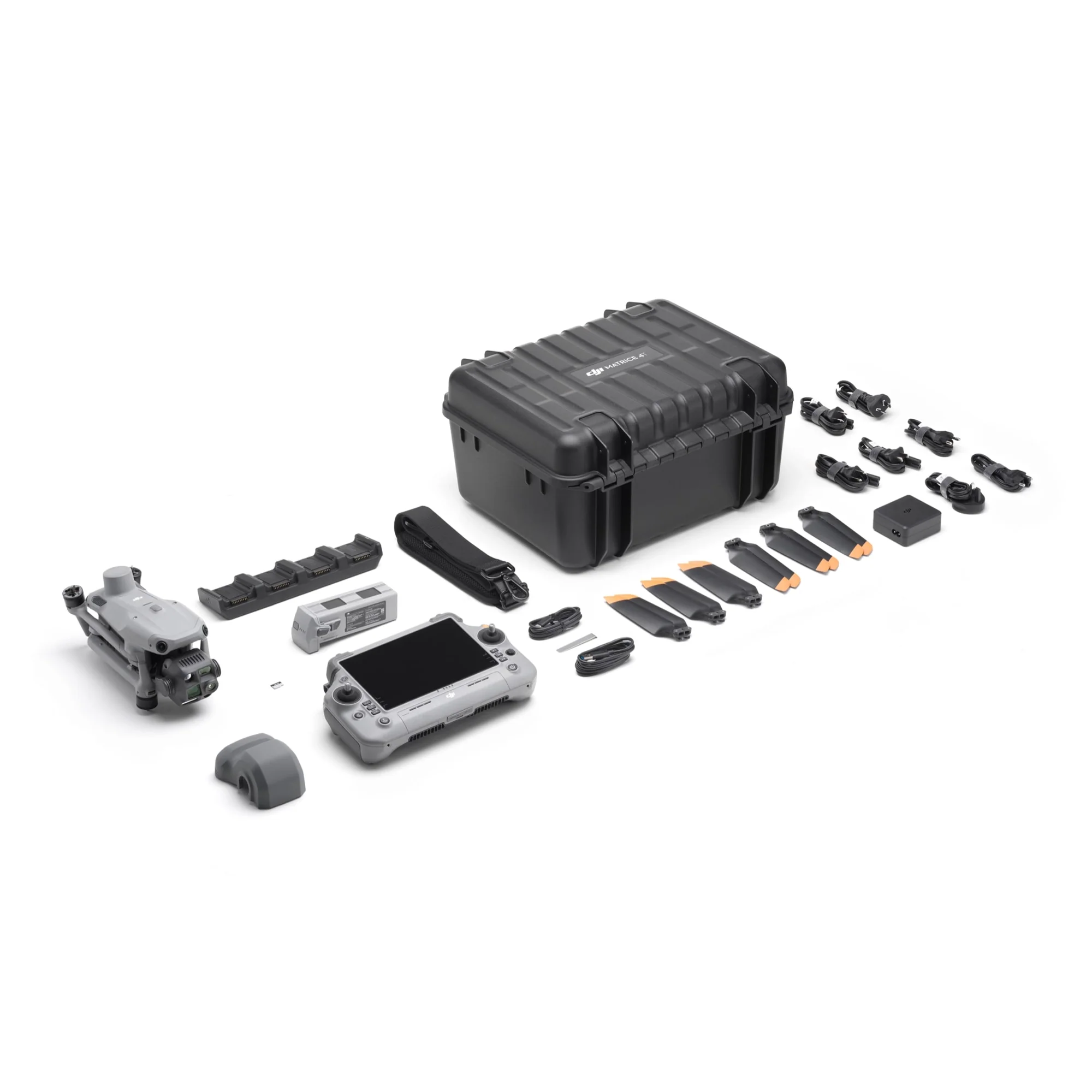

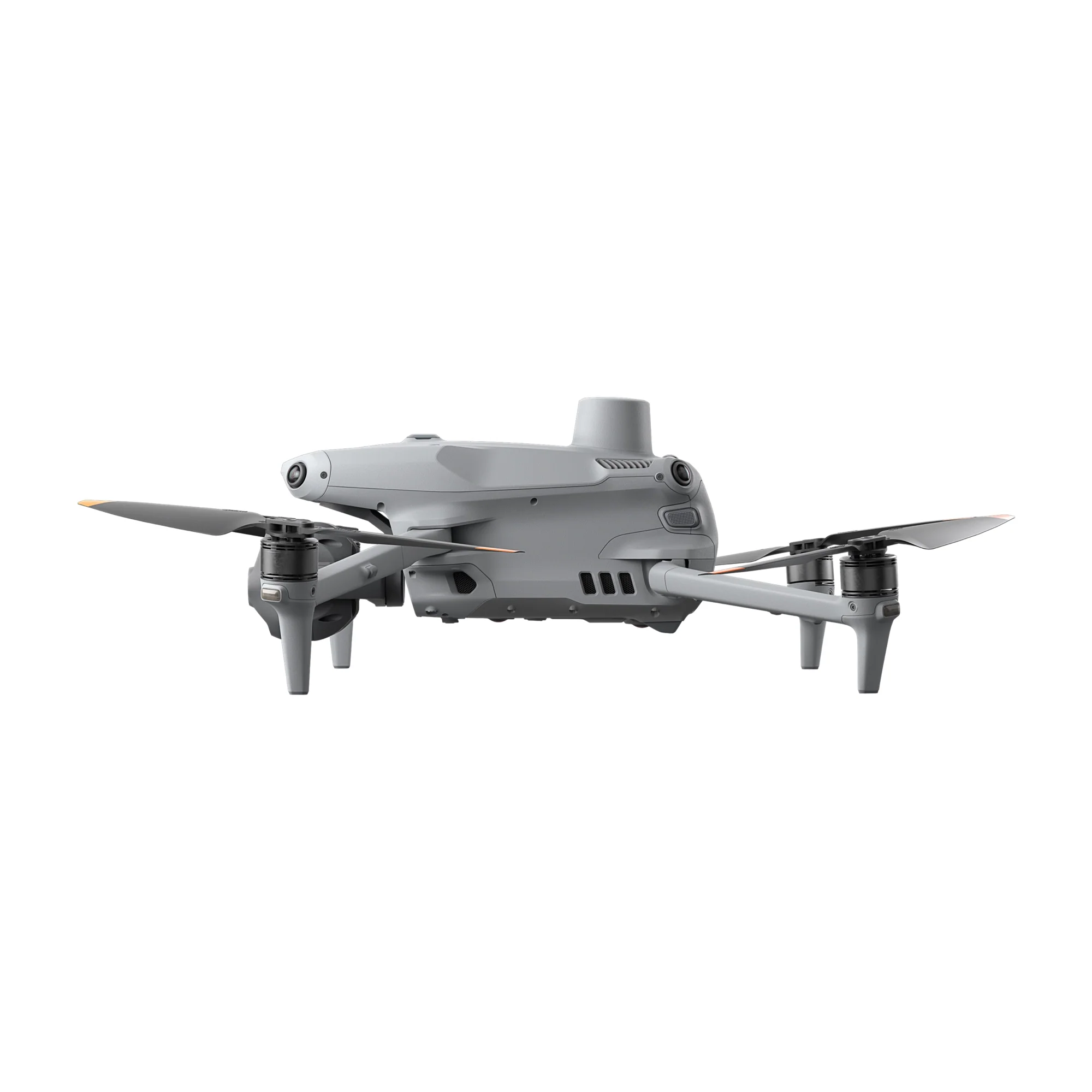

DJI Matrice 4T Thermal Drone

Original price was: $5,275.00.Current price is: $4,887.00.

Intelligent Operation Functions
Excels in Low-Light Environments
Clear Vision and Stable Images

High-Efficiency Precision Mapping
Enhanced Flight Safety
Includes 1 Year of DJI Care Enterprise Plus & 3 months DJI Terra license

Shipping details:
- Free Delivery on orders over $800
- Free 14 day returns
- Earn reward points
- US customer support
- Price match promise
Receive it in 2 business days.

Note: If the delivery takes more than 2 business days, we’ll refund the shipping costs and will give you a discount on your next purchase.

Description

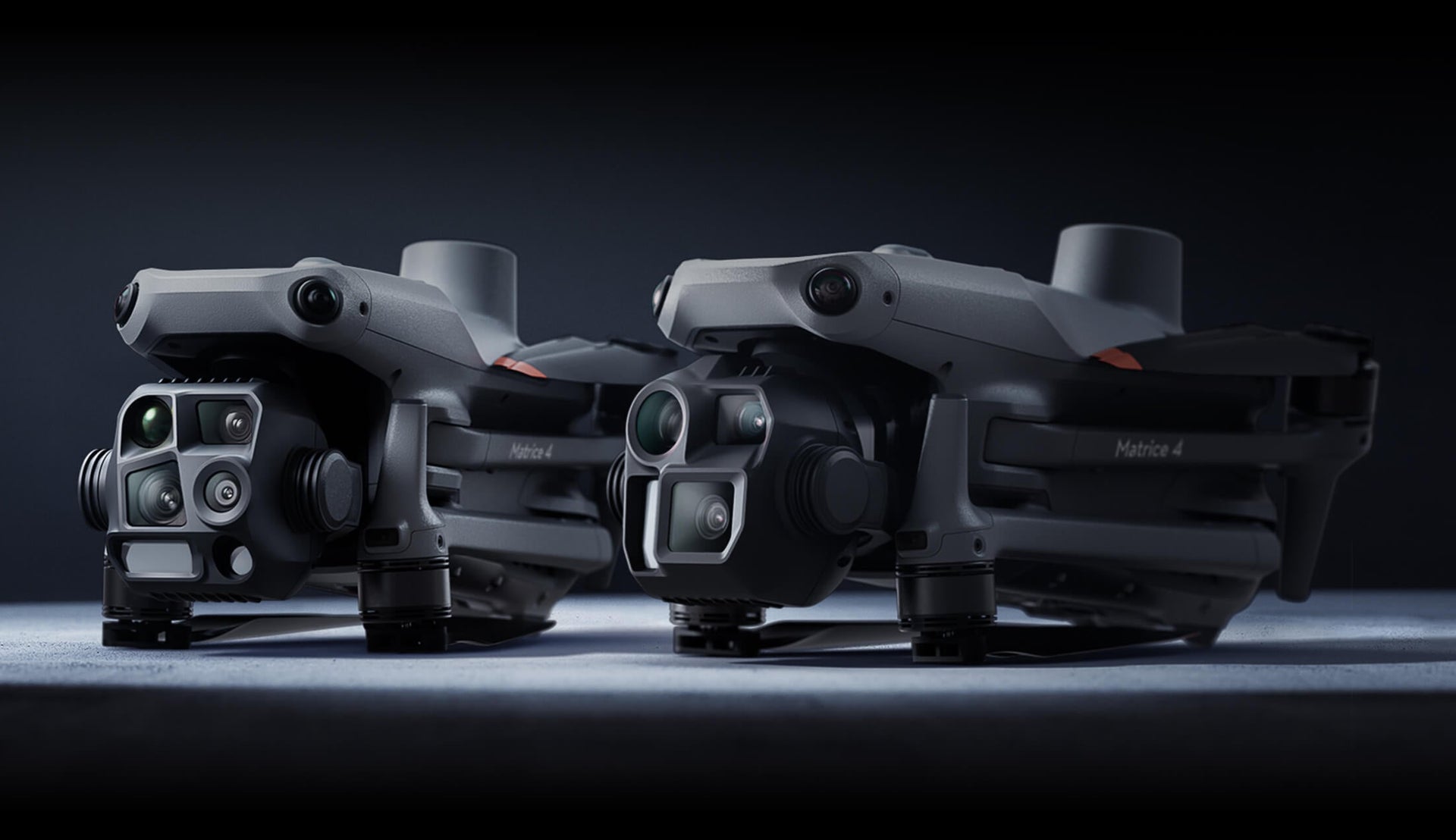

Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded. The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.

Wide-Angle Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm

Medium Tele Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera

1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

Laser Range Finder

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

Infrared Thermal Camera

Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode

NIR Auxiliary Light

FOV: 6°, Illumination Distance: 100 m
Wide-Angle Camera

4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter

Medium Tele Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera

1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

Laser Range Finder

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

Intelligent Operations With AI

AI Power for Smarter Operations

The built-in AI model can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of AI application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.

Laser Range Finder, Precise Measurement

The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.

Observation Range Recording

DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.

Efficient Flight, Intelligent Operations

uise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights easier.

Excel In Low-Light Environments

Night Scene Mode

The Matrice 4 series has received a significant night mode upgrade. Its Full-Color night vision now supports three modes and includes two levels of enhanced noise reduction. Equipped with an IR Cut Filter and NIR auxiliary light, it effortlessly overcomes the challenges of darkness, ensuring search and rescue subjects clearly visible.

Smart Low-Light Photo

The Matrice 4 series cameras feature larger apertures and intelligent low-light capabilities, significantly enhancing performance and improving operations during dusk and nighttime.

NIR Auxiliary Light

The Matrice 4T features new NIR illumination hardware, enabling lighting distances of up to 100 meters. This ensures clear visibility of objects in dark environments, making it ideal for applications like wildlife protection.

Thermal Imaging

The Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements.

Low-Light Fisheye Omnidirectional Sensing

The Matrice 4 series has six high-definition low-light fisheye vision sensors, significantly enhancing visual low-light positioning and obstacle avoidance capabilities. This allows for automatic obstacle avoidance, intelligent rerouting, and safe return in urban low-light environments.

Crystal Clear Vision: Unveil the Details

Capture Every Detail at A Distance

Enhanced Medium Telephoto

The Matrice 4 series is equipped with a medium tele camera, expanding its capabilities for medium-range inspection tasks. During power line or bridge inspections, it can detect screws and cracks from a distance of 10 meters and clearly read instrument data at substations.

Super Resolution Telephoto

The tele camera of the Matrice 4 series has significantly improved clarity, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away. [Additionally, the Matrice 4T is equipped with an IR-Cut Filter, ensuring 24/7 operations.

Foreground Stabilization for Telephoto Imagery

The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.

Electronic Dehazing, Clear as Ever

In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.

Precision Mapping, Time-Saving and Effortless

Rapid 0.5-Second Interval Shooting

The Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, enabling high-speed aerial surveying from multiple angles. Additionally, the mapping flight speed can reach up to 21 meters per second, significantly enhancing work efficiency.

5-Directional Oblique Capture

The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, significantly enhancing the efficiency of small drone oblique photography.

3-Directional Ortho Capture

Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.

Smart 3D Capture, Precision Modeling

DJI Matrice 4E supports Smart 3D Capture, which allows you to capture and create a rough model on the remote controller. Based on the rough model, it can quickly generate precise mapping routes close to a structures surface, completing detailed measurements and modeling of irregular buildings. It also supports displaying virtual space routes and waypoint photos for smart 3D capture, making it convenient to assess specific routes’ flight safety and coverage area.

Distortion Correction, Precision Enhancement

Distortion Correction 2.0 provides high-precision in-camera distortion correction with residual distortion less than 2 pixels. Each Matrice 4E’s wide-angle camera is calibrated before leaving the factory, when used with DJI Terra, it significantly improves reconstruction accuracy.

Auto-Generated Surveying Operation Report

Upon completion of an operation, DJI Pilot 2 can automatically generate a survey quality report. This report provides comprehensive access to key information such as photo points, RTK status, and photo parameters. If there are any anomalies, additional photos can be taken on-site to avoid repeated trips.

Safe Flight, Worry-Free Operation

Fusion Positioning, Safe Return-to-Home

The Matrice 4 series comes with an integrated DJI RTK module which supports the extended L5 frequency band and features GNSS+Vision Fusion Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds. Even without GNSS signals, it can complete the return-to-home process, effectively overcoming signal obstructions and interference commonly found in urban environments.

Intelligent Guidance, Unobstructed Flight

When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.

Achieve New Heights in Video Transmission

The O4 Enterprise video transmission system sets a new industry standard for challenging environments. Thanks to the 8-antenna system in the Matrice 4 Series and the high-gain antenna in the remote controller, you can achieve up to 25 kilometers in transmission range. Furthermore, the system improves image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series, ensuring more precise and stable images of route uploads and material downloads.

The Matrice 4 series supports an optional DJI Cellular Dongle 2. By utilizing 4G image transmission in conjunction with the aircraft’s antennas, signal stability is further enhanced.

Specifications


Aircraft
Takeoff Weight (with propellers)	1219 g* * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Takeoff Weight (with Low-Noise propellers)	1229 g* * The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
Max Takeoff Weight	Standard Propellers: 1420 g Low-Noise Propellers: 1430 g
Dimensions	Folded: 260.6×113.7×138.4 mm (L×W×H) Unfolded: 307.0×387.5×149.5 mm (L×W×H)Maximum dimensions excluding propellers.
Max Payload	200 g
Propeller Size	10.8 in
Diagonal Wheelbase	438.8 mm
Max Ascent Speed	10 m/s
Maximum Ascent Speed With Accessories	6 m/s
Max Descent Speed	8 m/s
Max Descent Speed With Accessories	6 m/s
Max Horizontal Speed (at sea level, no wind)	21 m/s 21 m/s flying forward, 18 m/s flying backward, 19 m/s flying sideways** No faster than 19 m/s with Sport mode in EU regions.
Max Altitude	6000 m
Max Operating Altitude with Payload	4000 m
Max Flight Time (without wind)	49 min (standard propellers) 46 min (low-noise propellers)Measured with the aircraft flying at approximately 9 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Hover Time (without wind)	42 min (standard propellers) 39 min (low-noise propellers)Measured by the aircraft hovering in a windless environment at sea level, from 100% battery level until 0%.
Max Flight Distance (no wind)	35 km (standard propellers) 32 km (low-noise propellers)Measured with the aircraft flying at approximately 14 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Max Wind Speed Resistance	12 m/s* * Max wind speed resistance during takeoff and landing.
Max Pitch Angle	35°
Operating Temperature	-10℃ to 40℃ (14°F to 104°F)
GNSS	GPS + Galileo + BeiDou + GLONASS* * GLONASS is supported only when the RTK module is enabled.
Hovering Accuracy Range (windless or breezy)	±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
RTK GNSS Accuracy	RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
Internal Storage	N/A
Ports	E-Port interface × 1: Supports official accessories and third-party PSDK devices (hot-swapping is not supported) E-Port Lite interface × 1: supports USB connection to DJI tuning software and some third-party PSDK devices.Accessories or expansion modules must be installed before powering on.
Propeller Model	1157F (standard propellers) 1154F (low noise propeller)
Beacon	Built into the aircraft
Camera
Image Sensor	DJI Matrice 4T Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MPDJI Matrice 4E Wide: 4/3-inch CMOS Effective Pixels: 20 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP
Lens	DJI Matrice 4T FOV: 82° Equivalent Focal Length: 24 mm Aperture: f/1.7 Focus: 1 m to ∞DJI Matrice 4E FOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞Medium Tele Camera FOV: 35° Equivalent Focal Length: 70 mm Aperture: f/2.8 Focus: 3 m to ∞Tele camera FOV: 15° Equivalent Focal Length: 168 mm Aperture: f/2.8 Focus: 3 m to ∞
ISO Range	Normal Mode: ISO 100 to ISO 25600 Night Scene Mode: Matrice 4T: Wide Camera: ISO 100 to ISO 409600 Midum Tele Camera: ISO 100 to ISO 409600 Tele Camera: ISO 100 to ISO 819200 Matrice 4E: Wide Camera: ISO 100 to ISO 204800 Midum Tele Camera: ISO 100 to ISO 409600 Tele Camera: ISO 100 to ISO 409600
Shutter Speed	DJI Matrice 4T 2-1/8000 sDJI Matrice 4E Wide: Electronic Shutter: 2-1/8000 s Mechanical Shutter: 2-1/2000 s Medium Telephoto: 2-1/8000 s Telephoto: 2-1/8000 s
Max Photo Size	DJI Matrice 4T Wide: 8064 × 6048 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144DJI Matrice 4E Wide: 5280 × 3956 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144
Minimum Photo Interval	DJI Matrice 4T: 0.7 s DJI Matrice 4E: 0.5 s
Still Photography Modes	DJI Matrice 4T: Wide: Single: 12 MP/48 MP Interval: 12 MP/48 MP JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting:12MP Panorama: 12 MP (raw image);100 MP (stitched image)Medium Tele Camera: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting: 12MPTelephoto: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG：0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting：12MPDJI Matrice 4E: Single: 20 MP Interval: 20 MP JPEG：0.5/0.7/1/2/3/5/7/10/15/20/30/60 s JPEG + RAW：2/3/5/7/10/15/20/30/60 s Smart Shooting: 20 MP Panorama: 20 MP (raw image);100 MP (stitched image)Medium Tele Camera: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting：12 MPTelephoto: Single: 12 MP and 48 MP Interval: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s Smart Shooting: 12 MP
Video Codec and Resolution	Video Coding Format: H.264/H.265 Coding Strategy: CBR, VBR Resolution: 4K: 3840 × 2160@30fps FHD: 1920 × 1080@30fps
Max Video Bitrate	H.264: 60Mbps H.265: 40Mbps
Supported File System	exFAT
Photo Format	DJI Matrice 4T: JPEG DJI Matrice 4E: Wide: JPEG/DNG (RAW) Medium Tele Camera: JPEG Telephoto: JPEG
Video Format	MP4 (MPEG-4 AVC/H.264)
Digital Zoom	Telephoto: 16x (112x hybrid zoom)
NIR Auxiliary Light
Infrared Illumination	DJI Matrice 4T: FOV: 5.7°±0.3°
Laser Module
Laser Rangefinding	Measurement Range: 1800 m (1 Hz) @20% reflectivity target* Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Distance Measurement Accuracy: 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters)* Performance degradation may occur in rainy or foggy conditions
Infrared Thermal Camera
Thermal Imager	DJI Matrice 4T: uncooled vanadium oxide (VOx) DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
Resolution	DJI Matrice 4T: 640 × 512
Pixel Pitch	DJI Matrice 4T: 12 μm
Frame Rate	DJI Matrice 4T: 30 Hz
Lens	DJI Matrice 4T DFOV: 45°±0.3° DJI Matrice 4T equivalent focal length: 53 mm DJI Matrice 4T Aperture: f/1.0 DJI Matrice 4T Focus: 5 m to ∞
Sensitivity	DJI Matrice 4T: ≤50mk@F1.0
Temperature Measurement Method	DJI Matrice 4T: Spot Meter, Area Measurement
Temperature Measurement Range	DJI Matrice 4T: High Gain Mode: -20℃ to 150℃ (-4°F to 302°F) () Low Gain Mode: 0℃ to 550℃ (32°F to 1022°F)
Palette	DJI Matrice 4T: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format	DJI Matrice 4T：JPEG (8bit)、 R-JPEG (16bit)
Video Resolution	DJI Matrice 4T: 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated) Other conditions: 640 × 512@30fps
Video Bitrate	DJI Matrice 4T: 6.5Mbps (H.264 640 × 512@30fps) 5Mbps (H.265 640 × 512@30fps) 12Mbps (H.264 1280 × 1024@30fps) 8Mbps (H.265 1280 × 1024@30fps)
Video Format	DJI Matrice 4T：MP4
Still Photography Modes	DJI Matrice 4T: Single: 1280 × 1024/640 × 512 Interval: 1280 × 1024/640 × 512 JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Photo Resolution	DJI Matrice 4T: Infrared: 1280 × 1024 (Super Resolution on) 640 × 512 (Super Resolution off)
Digital Zoom	DJI Matrice 4T: 28x
Infrared Wavelength	DJI Matrice 4T: 8um to 14um
Infrared Temperature Measurement Accuracy	DJI Matrice 4T: High Gain: ±2℃ or ±2%, whichever is greater DJI Matrice 4T: Low Gain: ±5℃ or ±3%, whichever is greater
Gimbal
Stabilization System	DJI Matrice 4T：3-axis (tilt, roll, pan) DJI Matrice 4E：3-axis (tilt, roll, pan)
Mechanical Range	DJI Matrice 4T Gimbal Mechanical Limits: Tilt: -140° to 113° Roll: -52° to 52° Pan: -65° to 65° Soft Limits: Tilt: -90° to 35° Roll: -47° to 47° Pan: -60° to 60°DJI Matrice 4E Gimbal Mechanical Limits: Tilt: -140° to 50° Roll: -52° to 52° Pan: -65° to 65° Soft Limits: Tilt: -90° to 35° Roll: -47° to 47° Pan: -60° to 60°
Controllable Rotation Range	DJI Matrice 4T DJI Matrice 4T Pan: ±-90° to 35° Pan: Not controllableDJI Matrice 4E Tilt: -90° to 35° Pan: Not controllable
Max Control Speed (tilt)	100°/s
Angular Vibration Range	±0.007°
Yaw Axis	Manual operation is uncontrollable The MSDK interface program is controllable.
Ingress Protection Rating	No Standard Protection Level
Operating Temperature	Standard: -10°C to 40°C (14°F to 104°F)
Sensing
Sensing Type	Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
Forward	Binocular Measurement Range: 0.4-22.5 m Measurement Range: 0.4-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/s FOV: 90° (horizontal), 135° (vertical)
Backward	Measurement Range: 0.4-22.5 m Measurement Range: 0.4-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/sField of View (FOV)-90° (horizontal), 135° (vertical)
Lateral	Measurement Range: 0.5-32 m Measurement Range: 0.5-200 m Obstacle Avoidance Speed: Flight Speed ≤21 m/s FOV: 90° (horizontal), 90° (vertical)
Downward	Measurement Range: 0.3-18.8 m Obstacle Avoidance Speed: Flight Speed ≤10 m/s The FOV to the front and rear is 160° and 160° to the right and left.
Operating Environment	Forward, Backward, Left, Right, and Upward: Delicate texture on the surface, adequate light.Downward: The ground has rich textures and sufficient lighting conditions, with a diffuse reflection surface and a reflectivity greater than 20% (such as walls, trees, people, etc.). Sufficient lighting conditions refer to an illuminance not lower than that of a nighttime city light scene.
Video Transmission
Video Transmission System	O4 Enterprise
Live View Quality	Remote Controller: 1080p/30fps
Operating Frequency	2.400-2.4835 GHz 2.400-2.4835 GHz 5.725-5.850 GHz 5.150-5.250 GHz (CE)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)	2.4 GHz: ≤33 dBm (FCC), ≤20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <30 dB (SRRC) , <14 dBm (CE) 5.15-5.25: < 23 dBm (FCC/CE)
Max Transmission Distance (unobstructed, free of interference)	25 km (FCC) 12 km (CE) 12 km (SRRC) 12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Max Transmission Distance (with interference)	Strong Interference – City Centers (approx. 1.5-5 km) Medium Interference – Suburban Areas (approx. 5-15 km) Micro interference：Suburbs/Seasides (approx. 15-25 km)* Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.
Max Download Speed	20 MB/s The above data was measured under conditions where the aircraft and remote controller were in close proximity without interference.
Latency (depending on environmental conditions and mobile device)	130 ms Under near-field interference-free conditions, the Latency performance when shooting with a 1x lens.
Antenna	8 antennas, 2T4R
Others	Cellular Dongle Compartment
Memory Card
Supported SD Cards	U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Recommended microSD Cards	Lexar 1066x 64GB U3 A2 V30 microSDXC Lexar 1066x 128GB U3 A2 V30 microSDXC Lexar 1066x 256GB U3 A2 V30 microSDXC Lexar 1066x 512GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 64GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 128GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 256GB U3 A2 V30 microSDXC Kingston Canvas GO! Plus 512GB U3 A2 V30 microSDXC
Intelligent Flight Battery
Capacity	6741 mAh
Standard Voltage	14.76 V
Max Charging Voltage	17.0 V
Cell Type	Li-ion 4S
Energy	99.5 Wh
Weight	401 g
Recharging Temperature	5°C to 40°C (41°F to 104°F)
Discharge Rate	4C
Max Charging Power	1.8C
Supports low-temperature charging	Not supported
Cycle Count	200
Power Adapter (100W)
Input	100-240 V (AC), 50-60 Hz, 2.5 A
Output	Max. 100 W (total)When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.
Rated Power	100 W
Charging Hub
Input	USB-C：5-20 V, max 5 A
Output	Battery Interface: 11.2 V to 17 V
Rated Power	100 W
Recharging Type	4 batteries charging in sequence Support Standard Mode (100% SOC) and Standby Mode (90% SOC)
Compatible Battery	DJI Matrice 4E/T Series Intelligent Flight Battery
Charging Temperature	5° to 40° C (41°F to 104°F)
DJI RC Plus 2 Enterprise
Video Transmission System	O4 Enterprise
Max Transmission Distance (unobstructed, free of interference)	25 km (FCC) 12 km (CE) 12 km (SRRC) 12 km (MIC)Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminder on the DJI Pilot 2 app.
Operating Band of Image Transmission	2.4000-2.4835 GHz 5.725 – 5.850 GHz 5.1GHz (receive only)Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Antenna	2T4R, built-in multi-beam high-gain antenna
Video Transmission Transmitter Power (EIRP)	2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
4G Transmission	DJI Cellular Dongle 2
Wi-Fi Protocol	Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax Support 2 × 2 MIMO Wi-Fi, Dual Band Simultaneous (DBS) with dual MAC, up to 1774.5 Mbps data rate (2 × 2 + 2 × 2 11ax DBS)
Wi-Fi Operating Band	2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz5.8 and 5.2GHz frequencies are prohibited in some countries. In some countries, the 5.2GHz frequency is only allowed for use in indoor.
Wi-Fi Transmitter Power (EIRP)	2.4 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/ MIC) 5.1 GHz: <23 dBm (FCC) 5.8 GHz ＜23 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth Protocol	Bluetooth 5.2
Bluetooth Operating Frequency	2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)	<10 dBm
Screen Resolution	1920 × 1200
Screen Size	7.02 inches
Screen Frame Rate	60 fps
Brightness	1400 nits
Touchscreen Control	10 Points Multi-touch
Built-in Battery	2S2P High Energy Density 18650 Lithium-ion Battery (6500 mAh @ 7.2 V) 46.8 Wh
External Battery	Optional, WB37 (4920 mAh @ 7.6 V) 37 Wh
Recharging Type	Supports PD fast charging, with a maximum specification of 20 V/3.25 A USB Type-C charger.
Storage Capacity	ROM 128 G + expandable storage via microSD card
Charging Time	2 hrs for internal battery or internal and external battery. When remote controller is powered off and using a standard DJI charger.
Internal Battery Runtime	3.8 hrs
External Battery Runtime	3.2 hrs
Output Port	HDMI 1.4
Indicators	Status light & power light & permission light, three-color light, brightness can be adjusted according to ambient brightness.
Speaker	Supports buzzer
Audio	Array MIC
Operating Temperature	-20° to 50° C (D228 (-4°F to 122°F)
Storage Temperature	Within one month: -30° to 45° C (-22°F to 113°F) One to three months: -30° to 35° C (-22°F to 95°F) Three months to one year: -30° to 30° C (-22°F to 86°F)
Recharging Temperature	5° to 40° C (41°F to 104°F)
Supported Aircraft Models	Support for Matrice 4T/4E
GNSS	GPS, Galileo, and BeiDou triple-mode, supports dynamic Home Point refresh.
Dimensions	268×163×94.5 mm (L×W×H) Width including external antenna folded, thickness including handle and controller sticks.
Weight	1.15 kg (without external battery)
Model	TKPL 2
System Version	Android 11
External Interfaces	HDMI 1.4, SD3.0, Type-C supports OTG, supports PD charging, maximum power 65W, USB-A supports USB 2.0 interface.
Accessory	Optional strap/waist support

Shipping details:

Description

Two Models, Countless Applications

Wide-Angle Camera

Medium Tele Camera

Tele Camera

Laser Range Finder

Infrared Thermal Camera

NIR Auxiliary Light

Wide-Angle Camera

Medium Tele Camera

Tele Camera

Laser Range Finder

Intelligent Operations With AI

AI Power for Smarter Operations

Laser Range Finder, Precise Measurement

Observation Range Recording

Efficient Flight, Intelligent Operations

Excel In Low-Light Environments

Night Scene Mode

Smart Low-Light Photo

NIR Auxiliary Light

Thermal Imaging

Low-Light Fisheye Omnidirectional Sensing

Crystal Clear Vision: Unveil the Details

Capture Every Detail at A Distance

Enhanced Medium Telephoto

Super Resolution Telephoto

Foreground Stabilization for Telephoto Imagery

Electronic Dehazing, Clear as Ever

Precision Mapping, Time-Saving and Effortless

Rapid 0.5-Second Interval Shooting

5-Directional Oblique Capture

3-Directional Ortho Capture

Smart 3D Capture, Precision Modeling

Distortion Correction, Precision Enhancement

Auto-Generated Surveying Operation Report

Safe Flight, Worry-Free Operation

Fusion Positioning, Safe Return-to-Home

Intelligent Guidance, Unobstructed Flight

Achieve New Heights in Video Transmission

Specifications

Related products

Reviews

Be the first to review “DJI Matrice 4T Thermal Drone” Cancel reply
