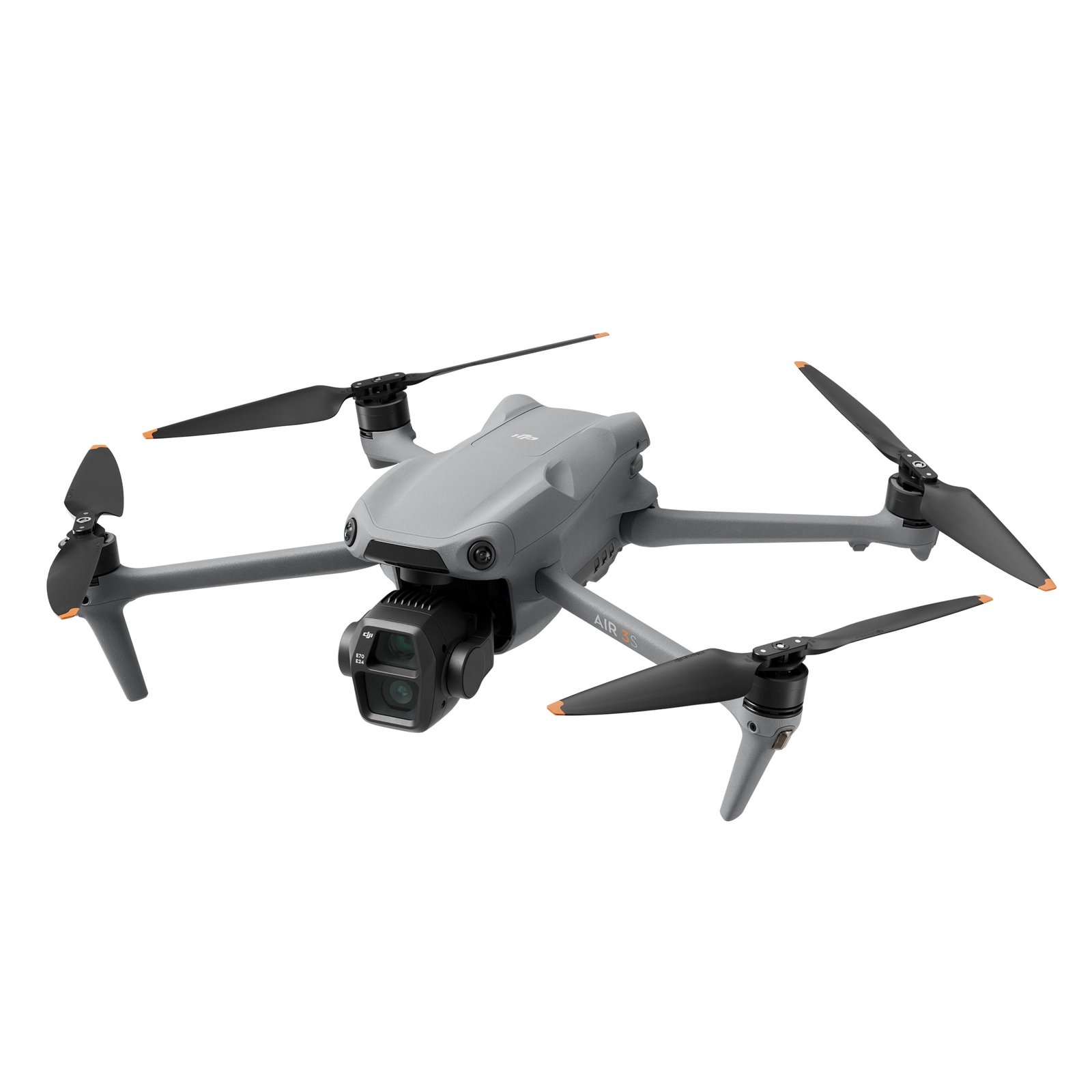

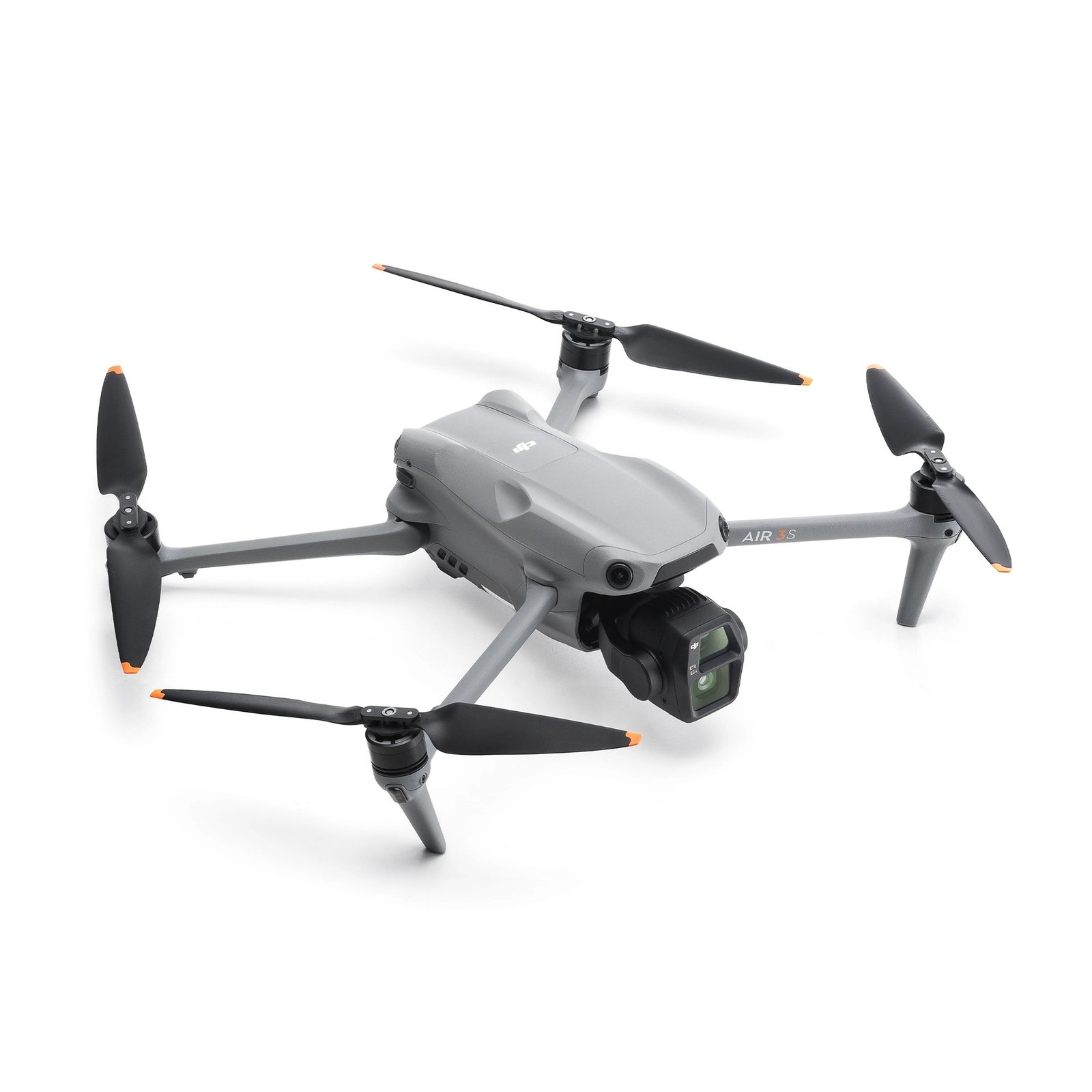

| AIRCRAFT |
:
|
| Takeoff Weight |
724 g
|
| Dimensions |

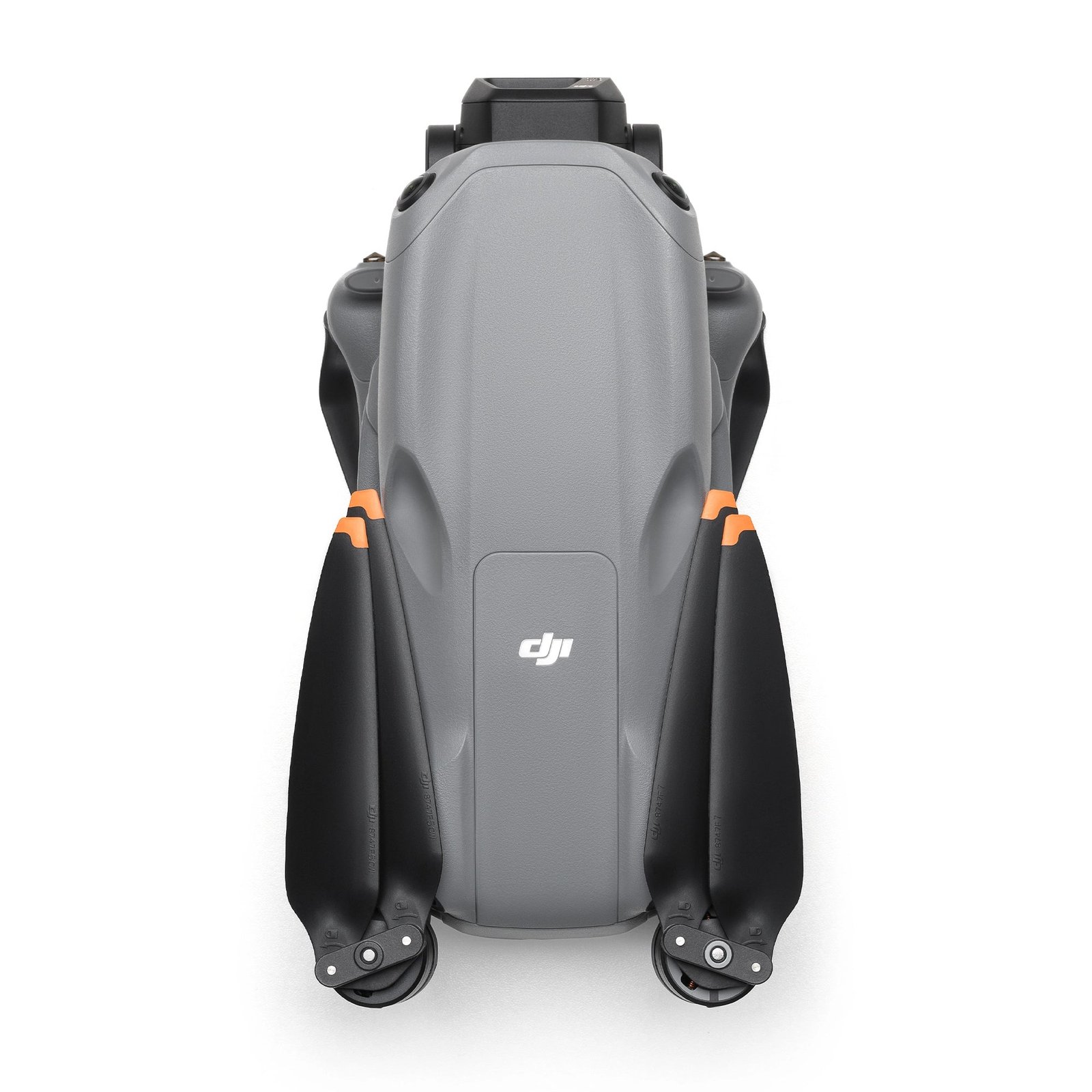

Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H)
Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H)
|
| Max Ascent Speed |
10 m/s
|
| Max Descent Speed |
10 m/s
|
| Max Horizontal Speed (at sea level, no wind) |
21 m/s
|
| Max Takeoff Altitude |
6000 m
|
| Max Flight Time |
45 minutes
|
| Max Hovering Time |
41 minutes
|
| Max Flight Distance |
32 km
|
| Max Wind Speed Resistance |
12 m/s
|
| Max Tilt Angle |
36°
|
| Operating Temperature |
-10° to 40° C (14° to 104° F)
|
| Global Navigation Satellite System |
GPS + Galileo + BeiDou
|
| Hovering Accuracy Range |
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with satellite positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with satellite positioning)
|
| Internal Storage |
42 GB
|
| CAMERA |
:
|
| Image Sensor |
Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels
Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels
|
| Lens |
Wide-Angle Camera
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/1.8
Focus: 0.5 m to ∞
Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞
|
| ISO Range |
Video
Normal:
100-12800 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)
Slow Motion:
100-6400 (Normal)
100-3200 (D-Log M)
100-3200 (HLG)
100-6400 (12 MP)
100-3200 (48 MP and 50 MP)
|
| Shutter Speed |
Wide-Angle Camera
12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
50MP Photo: 1/8000-2 s
Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
|
| Max Image Size |
Wide-Angle Camera: 8192×6144
Medium Tele Camera: 8064×6048
|
| Still Photography Modes |
Wide-Angle Camera
Single Shot: 12 MP and 50 MP
Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s
|
| Photo Format |
Wide-Angle Camera/Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
encoding.
|
| Video Format |
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
|
| Max Video Bitrate |
H.264/H.265: 130 Mbps
|
| Supported File System |
exFAT
|
| Color Mode |
Wide-Angle/Medium Tele Camera
Normal (FHD/2.7K): 8-bit 4:2:0 (H.264)
Normal (FHD/2.7K): 10-bit 4:2:0 (H.265)
HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265)
Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265)
|
| Digital Zoom |
Wide-Angle Camera: 1-2.9x
Medium Tele Camera: 3-9x
|
| GIMBAL |
:
|
| Mechanical Range |
Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27°
|
| Controllable Range |
Tilt: -90° to 60°
Pan: -5° to 5°
|
| SENSING |
:
|
| Sensing Type |

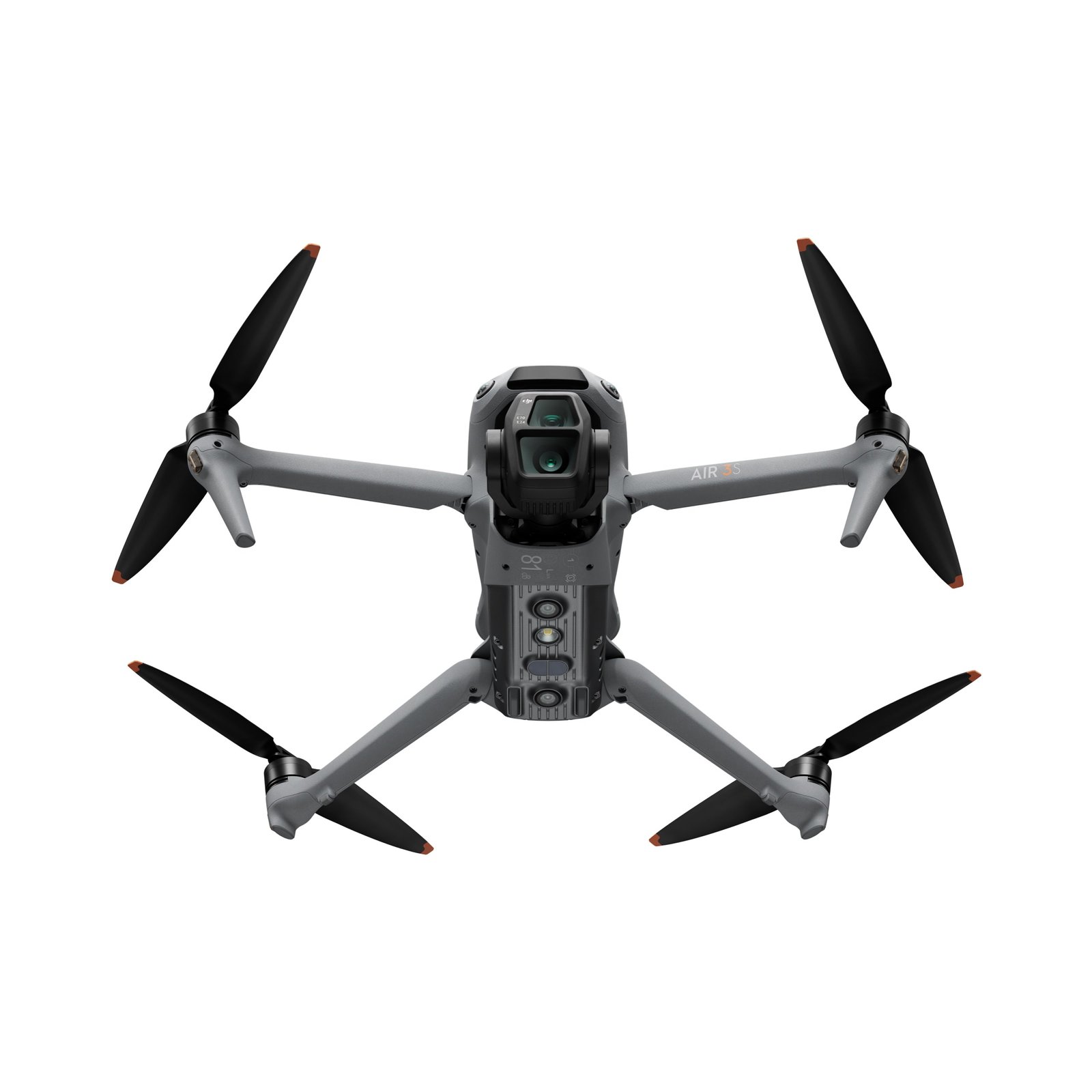

Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft
|
| Forward |
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Backward |
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Lateral |
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
|
| Upward |
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 72°, Left and Right 90°
|
| VIDEO TRANSMISSION |
:
|
| Video Transmission System |
O4
|
| Live View Quality |

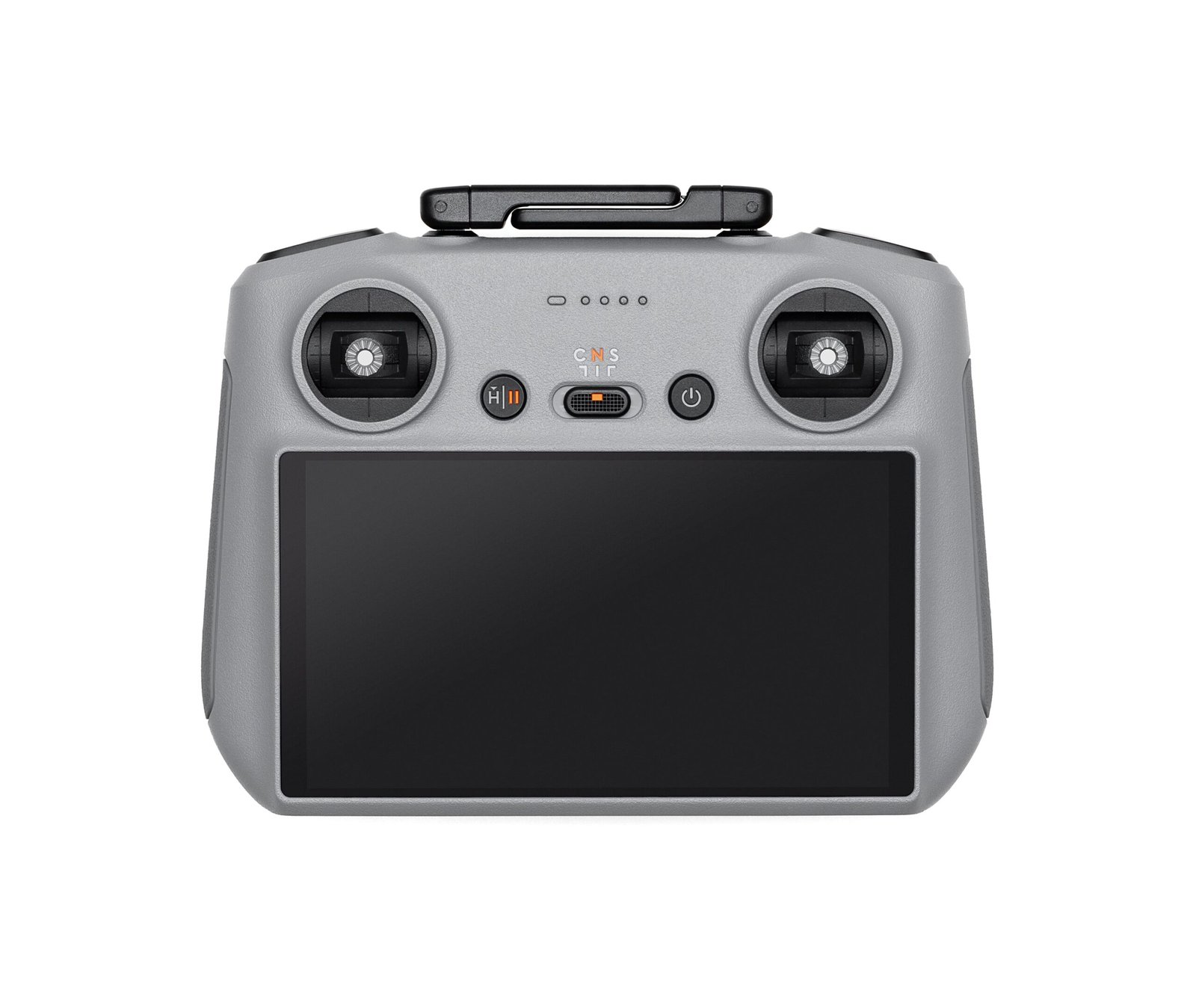

Remote Controller
1080p/30fps, 1080p/60fps
|
| Operating Frequency |
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
|
| Transmitter Power (EIRP) |
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
|
| Max Transmission Distance (free of interference) |
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km
|
| Max Transmission Distance (with interference) |
Strong Interference: Urban landscape, approx. 1.5-4 km
Medium Interference: Suburban landscape, approx. 4-10 km
Low Interference: Suburb/Seaside, approx. 10-20 km
|
| Max Download Speed |
O4:
10 MB/s (with DJI RC-N3)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s
|
| Lowest Latency |
Aircraft + Remote Controller: Approx. 120 ms
|
| Antenna |
6 antennas, 2T4R
|
| BATTERY |
:
|
| Capacity |
4276 mAh
|
| Weight |
Approx. 247 g
|
| Nominal Voltage |
14.6 V
|
| Max Charging Voltage |
17.2 V
|
| Type |
Li-ion 4S
|
| Energy |
62.5 Wh
|
| Charging Temperature |
5° to 40° C (41° to 104° F)
|
| Charging Time |
Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)
|
